Introduction

Calculating DC voltage drop for long cable runs is essential for reliable power delivery at a campsite. This guide will teach the reader how to determine load requirements, measure cable length, select appropriate conductors, and protect the system from over‑discharge. By following each step, one can avoid dim lights, weak motor performance, and premature battery failure. The information presented is valuable for anyone who uses portable solar panels, battery banks, or inverter systems while camping.

What You’ll Need

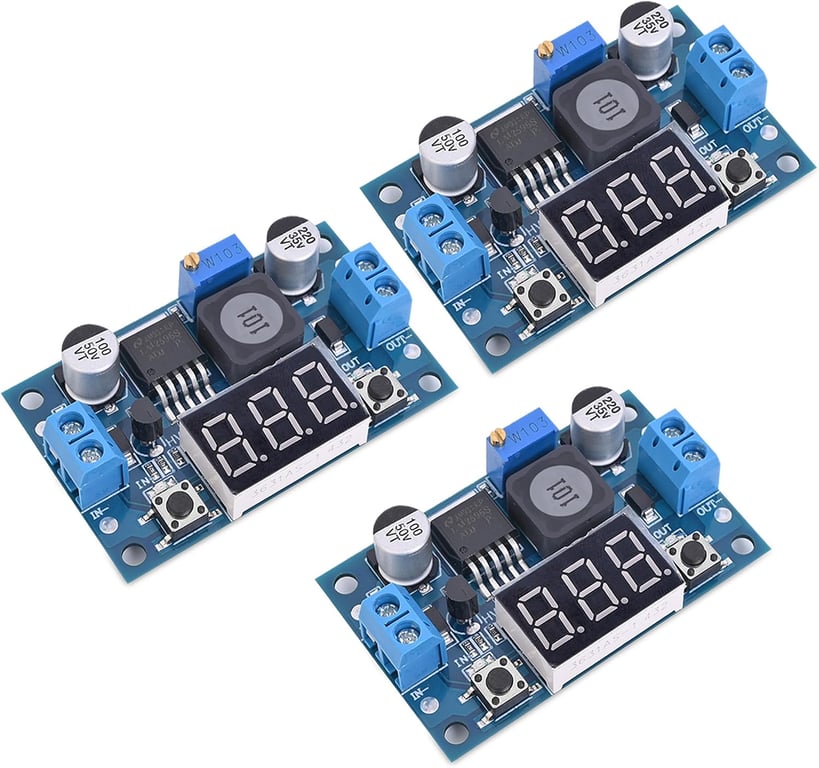

• Seloky LM2596 Buck Converter – Adjustable step‑down regulator, $12.99, 4.2/5 rating.

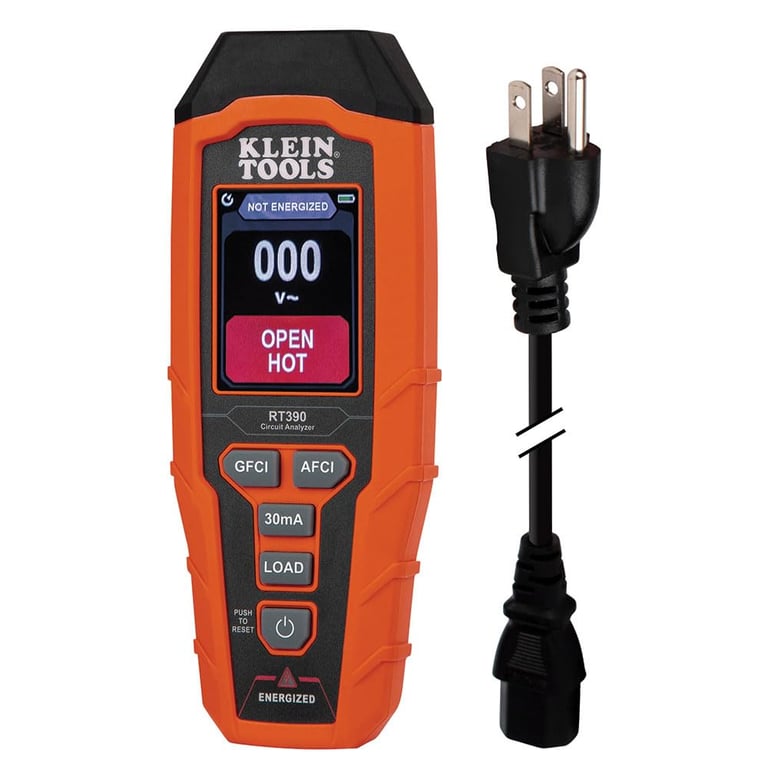

• Klein Tools RT390 Circuit Analyzer – Multi‑function tester, $159.99, 4.8/5 rating.

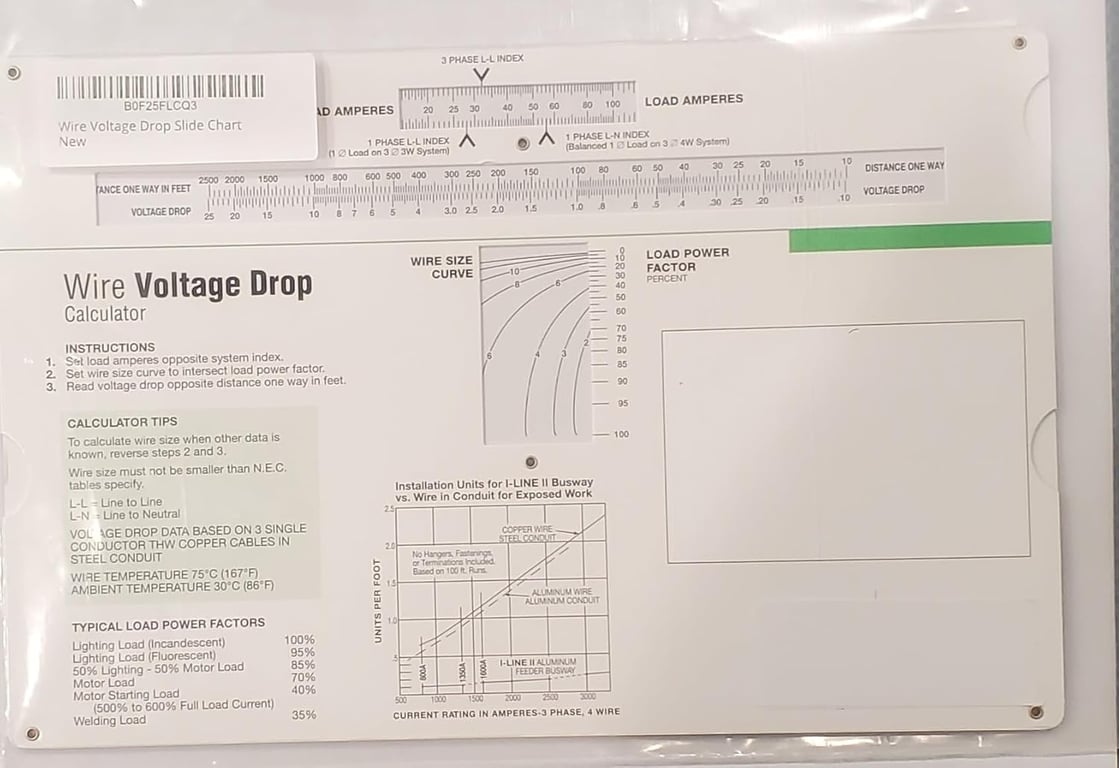

• Wire Voltage Drop Chart – Slip‑in reference chart, $15.00.

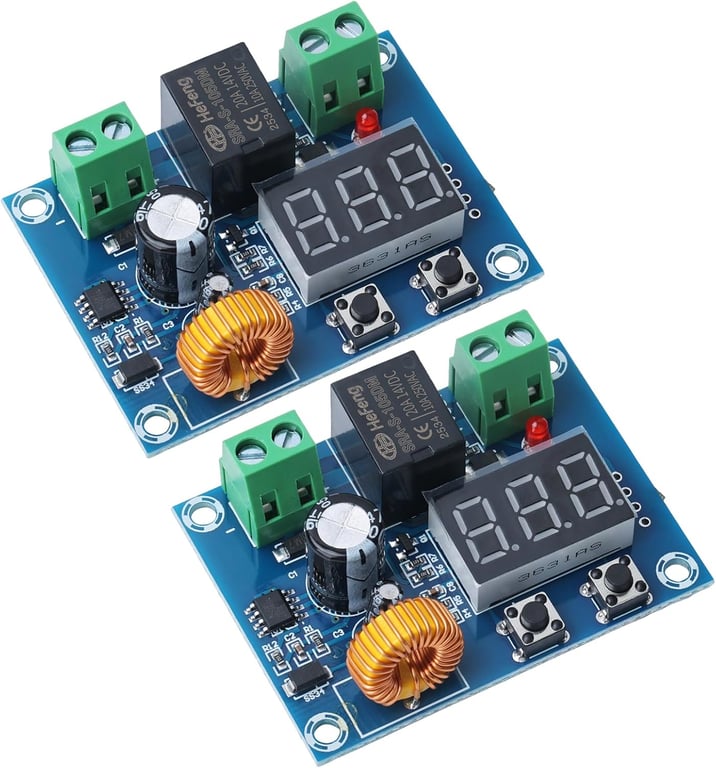

• Kerwinn Voltage Protection Module – Low‑voltage disconnect, $9.99, 3.8/5 rating.

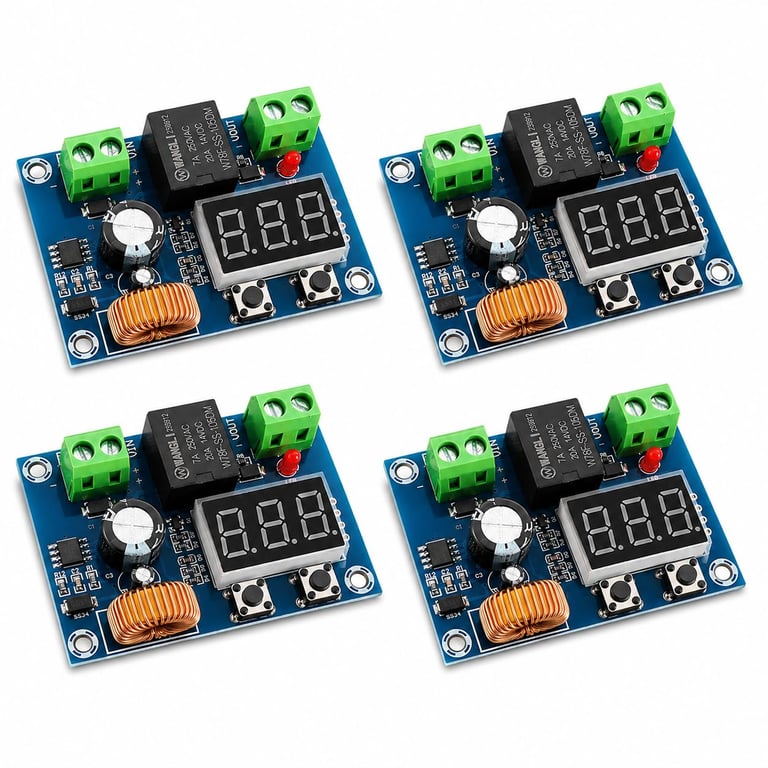

• UHUZZ Low Voltage Cutoff Module – Programmable cutoff, $14.99, 4.4/5 rating.
• Standard gauge copper wire, wire strippers, screwdriver, and a notebook for calculations.

Step 1: Assess Power Requirements

The first step is to identify the total current draw of all devices that will be powered from the campsite battery. List each device, its operating voltage, and its amperage, then sum the values to obtain the maximum load in amperes. For example, a 12 V LED light strip (2 A) and a 120 W inverter (10 A at 12 V) result in a combined load of 12 A. Knowing the load allows you to select a regulator that can handle the current without overheating. The Seloky LM2596 Buck Converter supports up to 3 A continuous, making it suitable for low‑power lighting but not for high‑current inverters; in such cases a larger regulator would be required.

Step 2: Measure Cable Length

Accurately measuring the one‑way distance between the power source and the load is critical because voltage drop is directly proportional to length. Use a tape measure or a laser distance meter to record the distance in feet, then double the value to account for the return path. For a 30‑foot run from a solar charge controller to a campsite refrigerator, the total loop length is 60 feet. Document the measurement in the notebook; this figure will be entered into the voltage‑drop calculator later. If the cable must travel around obstacles, add a safety margin of 5 % to the measured length.

Step 3: Choose Conductor Size Using the Voltage Drop Chart

With load current and loop length known, consult the Wire Voltage Drop Chart to select a wire gauge that limits drop to an acceptable level, typically less than 3 % of the system voltage. Locate the column for the desired amperage (e.g., 12 A) and read the recommended gauge for the recorded distance. For a 60‑foot loop at 12 A, the chart suggests 10 AWG copper to stay under 2.5 % drop. Using a smaller gauge such as 14 AWG would increase the drop to over 5 %, potentially causing dim lighting and reduced inverter efficiency. The chart also provides data for aluminum conductors, but copper is preferred for its lower resistance and better durability in outdoor environments.

Step 4: Configure Voltage Regulation

After selecting the appropriate wire, install a regulator at the load end to ensure the devices receive a stable voltage despite the drop. The Seloky LM2596 Buck Converter features an LED voltmeter display with ±0.1 V accuracy, making it easy to set the exact output voltage with a mini screwdriver. Connect the input terminals to the cable run, then adjust the potentiometer until the displayed voltage matches the device specification (e.g., 12.0 V for a 12 V refrigerator). The converter’s built‑in overheat and short‑circuit protection adds safety, and the LED display can be turned off to conserve power when not needed. For higher‑current applications, a larger buck module would be required, but the principle of setting the output remains the same.

Step 5: Protect the Battery Pack with Low‑Voltage Cutoff

Long cable runs increase the risk of deep discharge, especially when solar input fluctuates. Installing a low‑voltage protection device near the battery prevents over‑discharge, which can permanently damage lead‑acid or lithium cells. The UHUZZ Low Voltage Cutoff Module offers programmable thresholds, a 3‑digit LED display, and a relay that disconnects the load when voltage falls below the set point. Set the cutoff to 11.5 V for a 12 V lead‑acid battery and a reconnect difference of 0.3 V to avoid rapid cycling. The module’s accuracy of ±0.1 V and current rating of up to 20 A ensure reliable operation for most campsite power setups.

Step 6: Verify Installation with a Circuit Analyzer

Before finalizing the system, use a professional tester to confirm that wiring faults, voltage drops, and protection functions are operating correctly. The Klein Tools RT390 Circuit Analyzer displays line voltage, detects open neutral or ground, and performs load‑testing at 12 A, 15 A, and 20 A to reveal real‑world drop values. Connect the analyzer to the outlet at the load end, select the 12 A test, and observe the displayed voltage; it should be within the 3 % target range. Additionally, use the GFCI/AFCI testing function to ensure any protective devices in the campsite wiring are functional. The large color LCD simplifies interpretation, and the detachable cord allows flexible placement during testing.

Tips & Pro Tips

• Always route cables away from sharp edges and moving parts to prevent abrasion.
• Apply heat‑shrink tubing on all terminal connections to improve moisture resistance.
• When using the Seloky buck converter, hold the power switch for more than one second to turn off the LED display and conserve battery life.
• For solar‑charged batteries, set the low‑voltage cutoff slightly higher (e.g., 12.2 V) to accommodate temperature‑induced voltage variations.
• Document all settings in a waterproof notebook; this record simplifies future adjustments or troubleshooting.

Troubleshooting

Problem: Measured voltage at the load is lower than calculated.

Solution: Re‑check wire gauge and connections; a loose terminal can add resistance equivalent to several feet of wire. Verify that the buck converter is set to the correct output voltage and that the LED display is not consuming excessive power.

Problem: The low‑voltage cutoff does not engage.

Solution: Ensure the module is wired in series with the load and that the cutoff voltage is set below the battery’s nominal voltage but above the minimum safe level. Confirm that the relay contacts are not welded closed due to excessive current.

Conclusion

By following the six steps outlined above, one can accurately calculate DC voltage drop for long cable runs at a campsite and implement a safe, efficient power distribution system. The guide demonstrates how to assess load, measure distance, select conductors, regulate voltage, protect the battery, and validate the installation with a professional analyzer. Applying these practices will reduce power loss, extend battery life, and increase confidence in off‑grid operations. Remember to document settings, perform regular inspections, and adjust components as the campsite layout evolves.
