Introduction

This guide explains how to connect a wind turbine to a portable power station in a safe and reliable manner. The reader will learn how to select appropriate hardware, install the turbine, wire the electrical components, and verify system performance. Understanding these procedures enables one to harvest renewable wind energy for camping, emergency backup, or off‑grid living. The knowledge presented is valuable because it reduces reliance on fossil fuels and expands energy independence.

What You’ll Need

• Wind turbine suitable for the intended power output (see recommended products below).
• Portable power station with DC input compatible with the turbine’s voltage.
• Charge controller designed for wind applications.
• Mast or pole, mounting brackets, and ground anchors.
• Electrical conduit, wire connectors, and appropriate gauge wiring.
• Multimeter, wrench set, and basic hand tools.

Step 1: Assess Site and Safety Requirements

Begin by evaluating the installation site for unobstructed wind exposure and structural stability. Measure average wind speeds and confirm that the location meets the turbine’s minimum cut‑in speed, typically around 2.5 m/s for larger kits. Ensure that the area is clear of power lines, trees, and other obstacles that could cause turbulence. Follow local regulations and obtain any necessary permits before proceeding.

Step 2: Choose an Appropriate Turbine

For educational or low‑power applications, the Thames & Kosmos Wind Turbine STEM Kit provides a hands‑on model that demonstrates basic principles. It costs $35.89, carries a rating of 4.1 out of 5 stars from 58 reviews, and includes a small electric car to illustrate stored energy use. This kit is useful for learning blade pitch adjustments and generator output before handling larger equipment.

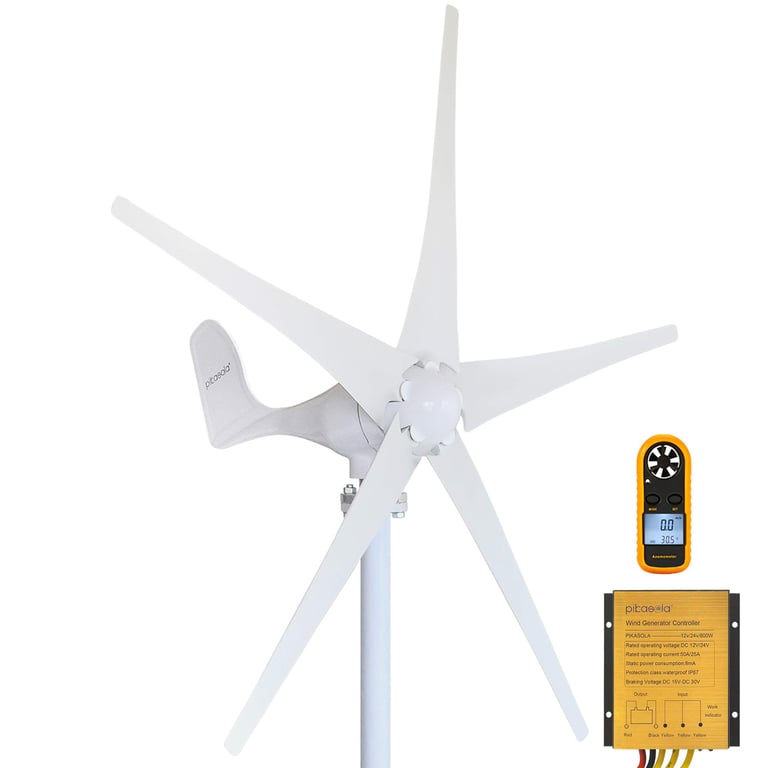

For real‑world power generation, the Pikasola 400W 12V Wind Turbine Kit delivers up to 400 W at 12 V, suitable for charging a portable power station. Priced at $269.99 with a rating of 3.8 out of 5 stars from 184 reviews, it features a five‑blade design, a three‑phase permanent magnet generator, and a yaw‑adjustable aluminum alloy body. The low cut‑in speed of 2.5 m/s and robust construction make it an ideal choice for marine, RV, or cabin installations.

Step 3: Assemble the Turbine and Mast

Follow the manufacturer’s manual to attach the turbine blades to the hub and secure the generator housing. For the Pikasola kit, use the supplied bolts to mount the turbine to the mast base, then raise the mast using a winch or manual pole. Ensure that the yaw mechanism is free to rotate so the turbine aligns with wind direction automatically. Tighten all fasteners to the torque specifications provided, and verify that the mast is anchored with ground stakes or a concrete base.

Step 4: Install the Charge Controller

The charge controller regulates voltage and protects the battery or power station from over‑charging. Connect the turbine’s three‑phase output leads to the controller according to the wiring diagram. Use waterproof connectors and seal any cable entries with silicone to prevent corrosion. The controller should be mounted in a weather‑protected enclosure within reach of the power station for easy monitoring.

Step 5: Wire the Controller to the Portable Power Station

Identify the DC input terminals on the portable power station; most units accept 12 V or 24 V input. Using appropriately gauged wire (typically 10‑AWG for 400 W), connect the positive and negative outputs of the charge controller to the power station’s input terminals. Observe correct polarity to avoid damage. Secure all connections with crimp connectors and insulate with heat‑shrink tubing.

Step 6: Perform Initial Testing

Before full operation, conduct a low‑speed test by exposing the turbine to a gentle breeze. Measure the voltage at the controller output with a multimeter; it should rise gradually as the turbine spins. Once the voltage stabilizes within the power station’s acceptable range, enable the charging mode on the station. Observe the state‑of‑charge indicator to confirm that energy is being stored.

Step 7: Secure Cabling and Finalize Installation

Route all cables through conduit to protect them from UV exposure, abrasion, and wildlife. Use zip ties to bundle excess wire and keep the installation tidy. Apply cable clamps at regular intervals to prevent movement caused by wind‑induced vibration. Finally, perform a visual inspection to ensure that no loose components remain.

Tips & Pro Tips

• Install a lightning arrestor on the mast if the turbine is placed in an area prone to thunderstorms.
• Periodically lubricate the yaw bearing to maintain smooth rotation.
• Use a digital anemometer to record wind speed and correlate it with power output for performance optimization.
• When using the STEM kit for educational purposes, incorporate data‑logging software to track LED brightness versus blade angle.

Troubleshooting

• No Output: Verify that the turbine is rotating freely; check for blade obstruction or misaligned yaw.
• Low Voltage: Inspect wire connections for corrosion; ensure that the charge controller is set to the correct battery voltage.
• Frequent Over‑charging Alerts: Adjust the controller’s charge cut‑off voltage or install a larger battery bank to accommodate excess energy.

Conclusion

The steps outlined above enable one to connect a wind turbine to a portable power station safely and efficiently. By selecting the appropriate turbine, installing a reliable charge controller, and following proper wiring practices, renewable wind energy can be harnessed for off‑grid power needs. Continued maintenance and periodic performance checks will ensure long‑term reliability. Readers are encouraged to apply these techniques to expand their sustainable energy capabilities.

Products Mentioned in This Guide

Frequently Asked Questions

What type of wind turbine is compatible with a portable power station?

Use a turbine whose rated voltage matches the DC input range of your power station, typically 12‑48 V for most portable units.

How do I choose the right charge controller for a wind turbine setup?

Select a charge controller rated for the turbine’s maximum current and designed for wind (MPPT or PWM with low‑voltage cut‑off) to protect the battery.

What gauge wiring should I use when connecting a wind turbine to a portable power station?

Choose wire gauge based on the turbine’s current and distance; 12‑AWG is common for up to 15 A over 10 ft, while longer runs may need 10‑AWG.

How can I safely mount a wind turbine for optimal wind exposure?

Install the turbine on a sturdy mast or pole with unobstructed exposure, using proper brackets and ground anchors to withstand wind loads.

How do I verify that the wind turbine and power station are working correctly after installation?

After wiring, use a multimeter to check voltage and polarity, then run the turbine and monitor the power station’s charge indicator for proper operation.
