Introduction

One who wishes to travel in a campervan while maintaining reliable electricity must first understand the current consumption pattern. This guide explains how to perform a complete energy audit, calculate daily watt‑hour requirements, and select an appropriately sized portable power station. By following the checklist, the reader will avoid undersized systems that cause frequent recharging, as well as oversized installations that waste money and space. The information is presented in a professional tone and can be applied whether the van is a weekend rig or a full‑time residence.

What You'll Need

• Notebook or digital spreadsheet for logging measurements
• Clamp‑on ammeter or multimeter capable of measuring DC current
• Power meter for AC appliances (optional but helpful)
• Solar panel(s) such as the HQST 400W Solar Panel
• Cable entry gland like the BougeRV Solar Cable Entry Gland
• Shore‑power inlet such as the WELLUCK 15A RV Shore Power Inlet
• DC power hub like the BLUETTI HUB D1 Power Hub

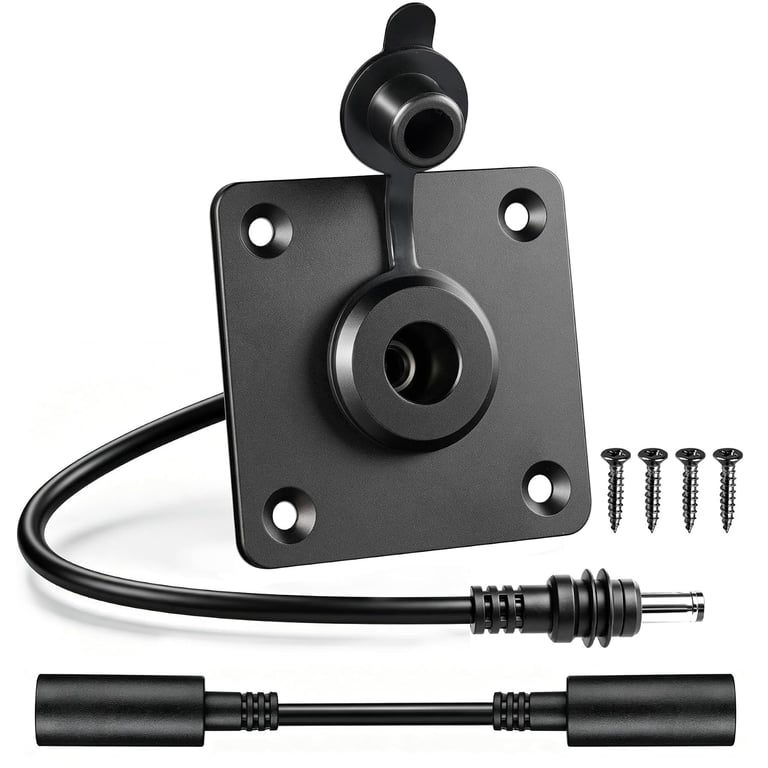

• Waterproof cable pass‑through kit for external connections, for example the RV Waterproof Cable Pass‑Through Kit

Step 1 – Document Existing Electrical Loads

The first major step is to list every device that draws power while the van is in use. Include lighting, refrigeration, water pumps, communication equipment, and any personal electronics. For each item note the rated wattage, typical usage hours per day, and whether the device runs on AC or DC. If the rating is not printed, use a clamp‑on ammeter to measure current at the operating voltage and calculate watts (W = V × A). Recording this data in a spreadsheet enables quick summation and later comparison with solar generation.

Why this matters is that a precise load inventory prevents the common mistake of guessing consumption, which often leads to insufficient battery capacity. The process also reveals devices that could be replaced with more efficient alternatives, thereby reducing overall demand.

Step 2 – Measure Real‑World Consumption

After the inventory is complete, measure actual consumption for a typical day. Connect a power meter to the main DC bus or use a dedicated battery monitor to capture total amp‑hours drawn. For AC loads, plug the meter between the inverter and the outlet. Run the van through a normal itinerary, including cooking, showering, and nighttime lighting. Record the total watt‑hours (Wh) consumed; this figure is the baseline for sizing the power station.

Real‑world measurement captures inefficiencies such as inverter losses and battery self‑discharge, which are not reflected in rated wattage alone. It also provides a realistic target for solar panel output, ensuring that the renewable system can meet daily needs under typical conditions.

Step 3 – Calculate Daily Energy Requirement

• Add the watt‑hours of all DC devices.
• Add the watt‑hours of all AC devices, adjusting for inverter efficiency (typically 85‑90%).
• Include a safety margin of 20 % to accommodate cloudy days or unexpected loads.

For example, a 12 V refrigerator drawing 4 A for 24 hours consumes 1,152 Wh (12 V × 4 A × 24 h). An AC microwave rated at 1,000 W used for 0.2 h adds 200 Wh, but after accounting for 85 % inverter efficiency the contribution becomes roughly 235 Wh. Summing all adjusted values and adding the safety margin yields the final daily requirement.

Step 4 – Size the Portable Power Station

With the daily watt‑hour target known, select a power station that can deliver at least that amount in usable capacity. Most lithium‑ion stations list a usable capacity that is about 90 % of the nominal rating. Divide the daily requirement by 0.9 to obtain the minimum nominal capacity needed.

For instance, if the audit shows a 2,500 Wh daily need, a power station with at least 2,800 Wh nominal capacity is advisable. The BLUETTI HUB D1 Power Hub provides 700 W of continuous output and integrates with larger BLUETTI battery packs, making it a flexible core for modular expansion. Its smart app allows monitoring of remaining capacity, which helps the user avoid deep discharge that shortens battery life.

When choosing a station, consider peak power demand (the highest simultaneous load) as well as total energy. If the van runs a 1,200 W inverter and a 500 W heater at the same time, the station must supply at least 1,700 W peak. The BLUETTI HUB D1 supports up to 700 W, so pairing it with an additional battery module or a higher‑capacity unit may be necessary for high‑draw scenarios.

Step 5 – Select Solar Panels to Meet the Load

Solar generation must satisfy the daily energy requirement while accounting for seasonal variations and shading. A rule of thumb is to divide the daily watt‑hour need by the average peak‑sun‑hours for the intended travel region (typically 4‑5 h). Multiply the result by a factor of 1.2 to cover losses in wiring, charge controller, and temperature.

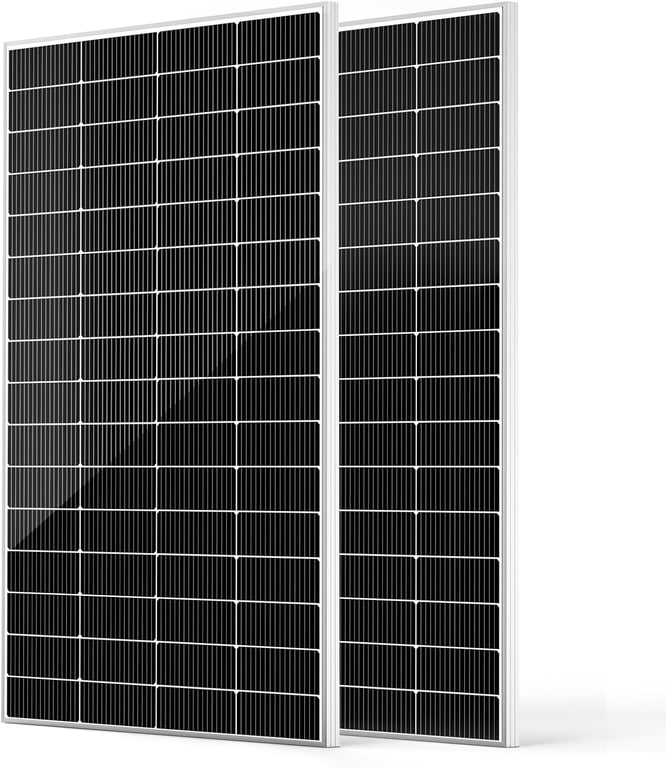

The HQST 400W Solar Panel offers high efficiency (up to 25.4 %) and a compact footprint, making it ideal for campervan roofs where space is limited. Each 200 W panel measures 30.1 × 46.3 inches and weighs 20.17 lb, reducing the number of mounts and cables compared with multiple smaller panels. Using two of these panels yields 400 W of peak power, which can generate roughly 1,800 Wh per day in four peak‑sun‑hours, comfortably covering a 2,500 Wh requirement when combined with battery storage.

Install the panels on a sturdy, corrosion‑resistant frame and angle them toward the equator for optimal exposure. The N‑Type cells maintain output in low‑light conditions, providing useful energy during cloudy mornings and evenings.

Step 6 – Provide a Weather‑Proof Cable Entry

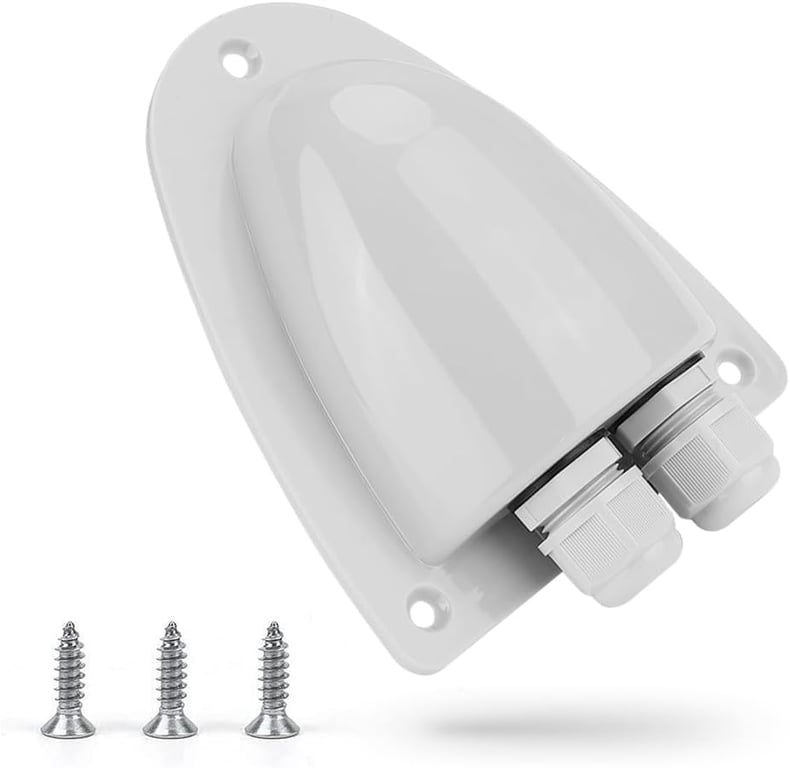

Running solar leads from the roof to the interior battery compartment requires a sealed passage to prevent water ingress. The BougeRV Solar Cable Entry Gland is designed for 10‑14 AWG cables, features a PG11 waterproof rating, and includes hexagon nuts that prevent the inner nut from turning during tightening. Its ABS housing with UV‑resistant additives ensures long‑term durability on exposed surfaces.

To install, drill a hole matching the gland’s diameter, insert the gland, and secure it with the included stainless‑steel self‑tapping screws. Apply a silicone sealant around the outer edge for added protection. Feed the solar cables through the gland, tighten the cap, and verify that no moisture can enter.

Step 7 – Add a Shore‑Power Inlet for Flexibility

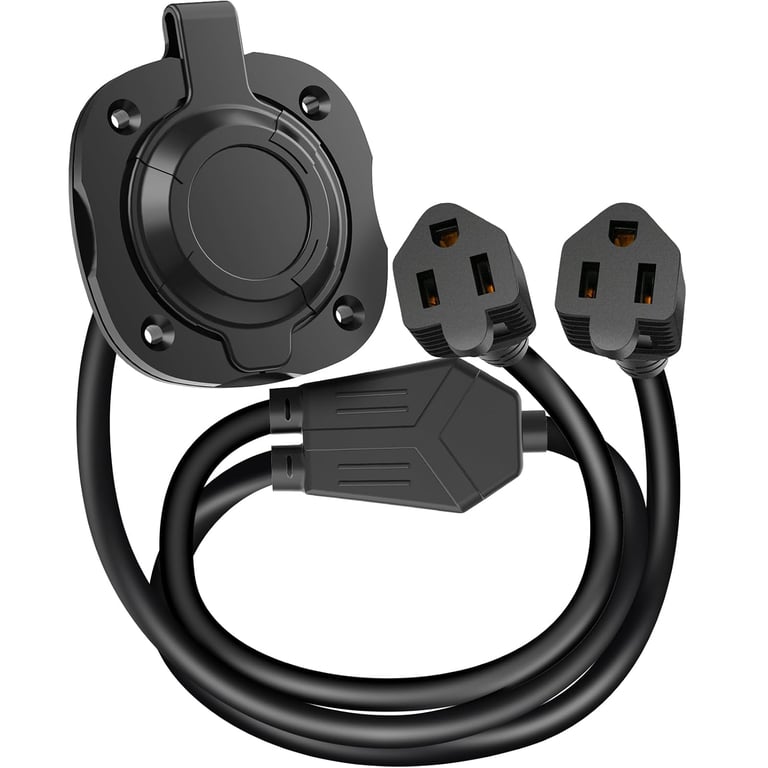

When the van is parked at a campground, a shore‑power inlet provides a convenient alternative to solar. The WELLUCK 15A RV Shore Power Inlet includes a pre‑wired 18‑inch extension cord, eliminating the need for separate wiring. Its nickel‑coated copper contacts resist oxidation, and the ETL‑approved weatherproof cover protects the connection from rain and snow.

Installation requires a 2‑inch hole in the van wall, after which the flanged inlet is secured with four stainless‑steel screws. The supplied hole cutter simplifies the process, and the back cover ensures a sealed enclosure when the inlet is not in use. This inlet allows the user to charge the portable power station directly from grid power, reducing reliance on solar during extended stays.

Step 8 – Integrate Devices with a DC Power Hub

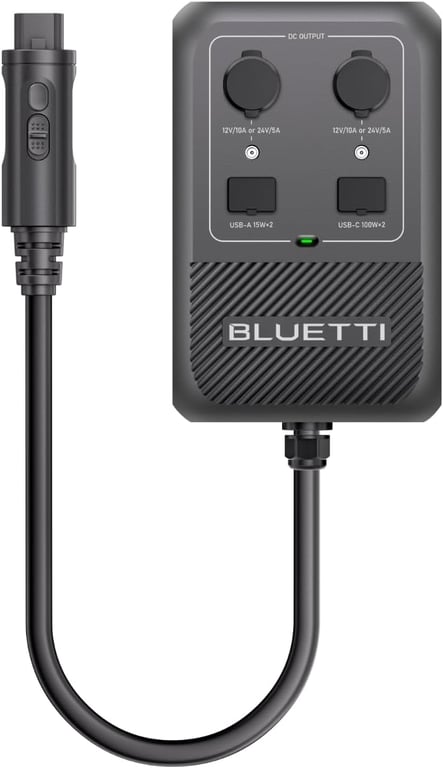

Connecting multiple 12 V or 24 V accessories can become tangled if each device uses separate cables. The BLUETTI HUB D1 Power Hub consolidates power distribution with 12 V/24 V ports, cigarette‑lighter sockets, and USB‑C outputs. Its Bluetooth‑enabled app lets the user monitor voltage, current, and power consumption in real time, facilitating adjustments to load balancing.

Mount the hub on the interior wall or clip it to the power station handle. Connect the hub to the battery’s DC output, then plug lights, pumps, and communication equipment into the appropriate ports. The hub’s overload protection prevents accidental short circuits, and the app provides alerts if any device exceeds safe limits.

Tips & Pro Tips

• Always use MC4‑type connectors on solar leads to ensure a secure, weather‑tight connection.
• When mounting panels, leave a small gap between the panel and the roof to allow reflected light to reach the bifacial surface, improving yield.
• Consider adding a small MPPT charge controller; MPPT controllers increase charging efficiency compared with PWM by up to 30 %.
• Label each cable and fuse clearly to simplify future troubleshooting.
• Store the portable power station in a ventilated compartment to avoid overheating during high‑draw operations.

Troubleshooting

Problem: Solar panels produce less power than expected on sunny days.
Solution: Verify that the panels are oriented correctly, check for shading from roof fixtures, and confirm that the charge controller is set to the correct voltage (12 V vs 24 V). Also inspect MC4 connectors for corrosion.

Problem: Battery voltage drops rapidly when multiple devices are turned on.
Solution: Ensure that the total load does not exceed the power station’s continuous output rating. Use the BLUETTI HUB D1 app to monitor real‑time draw and shut off non‑essential devices.

Problem: Water leaks around the cable entry gland.
Solution: Apply a bead of silicone sealant around the gland after installation, and confirm that the gasket is seated properly.

Conclusion

One who follows this checklist will gain a clear understanding of the campervan’s energy consumption, be able to calculate the exact daily watt‑hour requirement, and select a portable power station that meets both capacity and peak‑power needs. Properly sized solar panels, a sealed cable entry, a reliable shore‑power inlet, and a smart DC hub together create a resilient off‑grid electrical system. By implementing the tips and troubleshooting steps, the user can maintain reliable power throughout the year, whether traveling in bright desert climates or cloudy coastal regions.

Products Mentioned in This Guide

Frequently Asked Questions

What is the first step in conducting a campervan energy audit?

Start by logging the power draw of each device over a typical day using a notebook or digital spreadsheet.

Which tools are essential for measuring DC and AC consumption in a van?

A clamp‑on ammeter or multimeter for DC current and a power meter for AC appliances are the most useful.

How do I calculate my daily watt‑hour (Wh) requirement?

Multiply each device’s wattage by the hours it runs per day, then sum all values to get total Wh.

What factors determine the correct size of a portable power station?

Match the station’s capacity to your total daily Wh need and ensure it can handle the peak load of your highest‑draw appliance.

Why should I avoid both undersized and oversized power systems?

Undersized systems require frequent recharging, while oversized ones waste money and take up unnecessary space.
